2008 Tru-Turn Engine Lathe, 55" X 240", 36" SOC, 30HP, 315 RPM, Threading, Steady Rest, ID17653
No longer available
2008 Tru-Turn Engine Lathe, 55" X 240", 36" SOC, 30HP, 315 RPM, Threading, Steady Rest, ID17653
Location:Pennsylvania
Description
2008 Tru-Turn Engine Lathe, 55" X 240", 36" SOC, 30HP, 315 RPM, Threading, Steady Rest, ID17653
Specifications
| Manufacturer | Tru-Turn |
| Model | CW62125D |
| Year | 2008 |
| Condition | Used |
| Stock Number | 17653 |
| Swing | 55" |
| Swing over cross slide | 36" |
| Distance between centers | 240" |
| Spindle drive motor | 30 hp |
| Spindle speed (mimimum) | 4 rpm |
| Spindle speed (maximum) | 315 rpm |
| Spindle bore | 5.5" |
| Chuck size | 39" Face Plate |
| Number of jaws | 4 |
| Machine weight | 31,250 lbs |

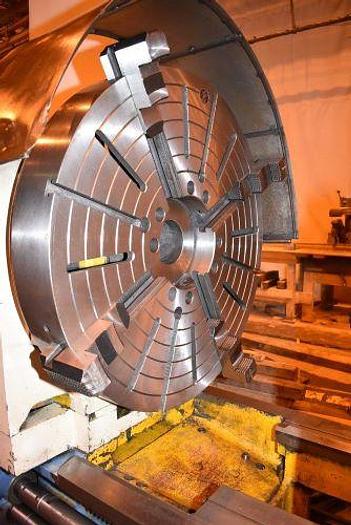

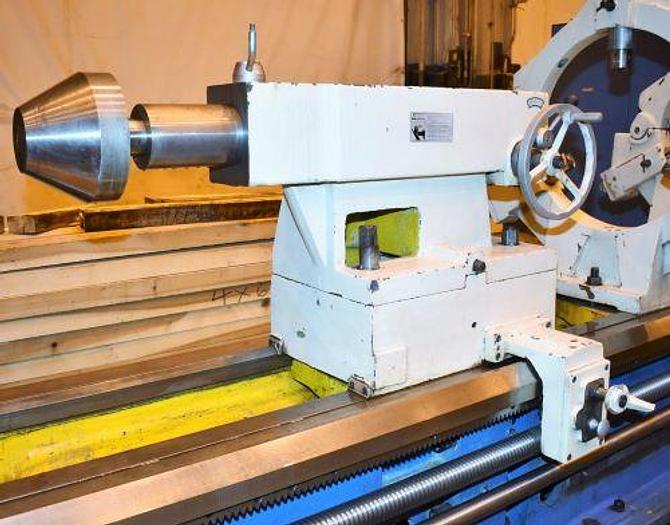

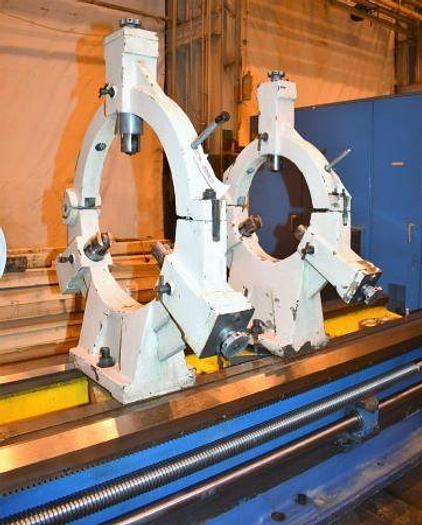

| Equipped with | 39.7" 4 Jaw Faceplate Type Chuck, 17.7" & 27.5" Steady Rests, Taper turning via Power Feed to Compound, Motorized Tailstock, Follow Rest, Thread Dial, Chip Pan and Coolant System. |
| Electrics | 30 H.P., 440 volt, 3 phase, 60 cycle main motor |
